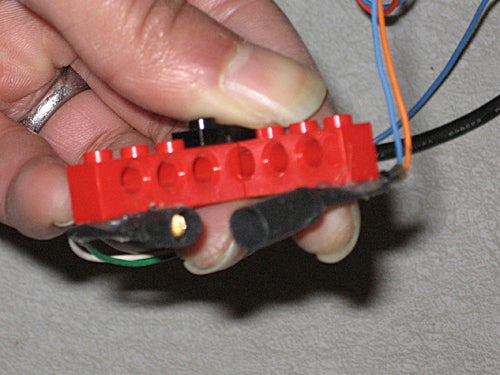

« Previous From the front, the diodes line up at right angles. Gallery »

The diodes are matched so the photodiode is sensitive to the wavelength produced by LED, to avoid being triggered by other signals.


Credit: Image by MIT OpenCourseWare.
